Summary

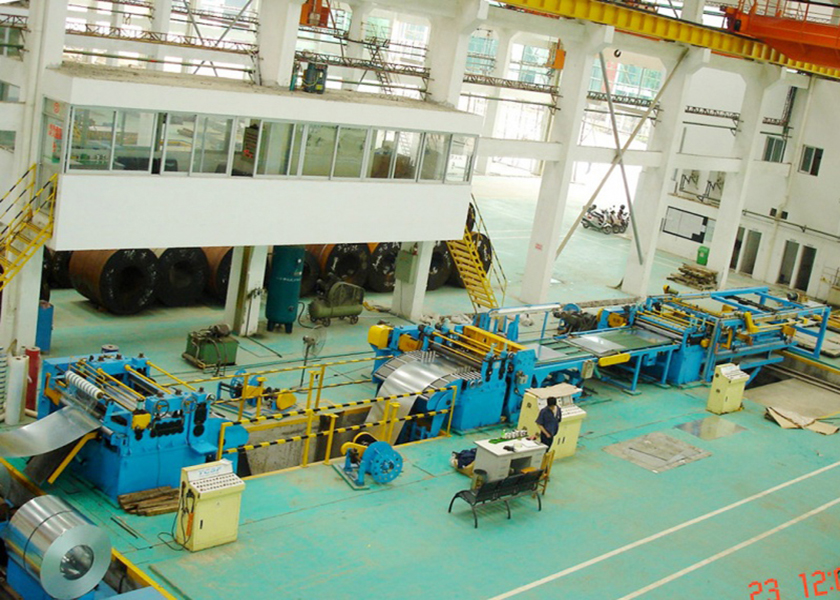

A flat sheet of material is not actually produced by steel mill as
a flat sheet. In reality, a flat sheet of material starts its life
as part of a coil of material. A Cut-To-Length Line will uncoil the
material, level it, and then cut it to the required length and
stack it. The end product produced by a Cut-To-Length Line is a
flat sheet of material cut to a very precise length tolerance. When
considering a Cut-To-Length and the proper line configuration for
your application, there are several variables you should consider:
the thickness of material, the type of material, length of the
sheets to be produced, as well as annual volume to be processed all
influence the line configuration and capabilities required for a
successful installation.
Technical process
1: Coil saddle
2: Loading car
3: Hydraulic cantilever arm uncoil + hydraulic support
4: Guiding plat for feeding device
5: Pinch and 4-hi leveling machine
6: Loop
7: Side guiding & deviation correcting device
8: Pinch & 5 roller fine leveler
9: Pneumatic shearing machine
10: Belt conveyor
11: Pnumatic discharging frame
12: X type lifting table
13: Unloading car
14: Hydraulic system
15: Pneumatic system
16: Electrical control system
Light Duty Cut to length Machine Line
| Model | 0.3-2.0×800 | 0.3-2.0×1250 | 0.5-3.0×1250(1600) |
| Coil Material | δs≤230N/mm2, Cold-rolled Coil, Stainless Steel Coil, Galvanized Coil | ||
| Coil Thickness | 0.3~2.0mm | 0.3~2.0mm | 0.5~3.0mm |
| Coil Width | 300~800mm | 800~1250mm | 800~1250mm(1600mm) |
| Coil Weight | ≤10 tons | ≤20 tons | ≤20(25) tons |
| Coil ID | ф508mm | ф508mm | ф508mm(ф610mm) |
| Coil OD | ≤ф1800mm | ≤ф1800mm | ≤ф1800mm |
| Cutting length | 300~3000mm | 300~4000mm | 300~4000mm |
| Cutting Accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Line Speed | 0~100m/min | 0~100m/min | 0~100m/min |
| Control System | PLC | PLC | PLC |
Heavy Duty Cut to length Machine Line
| Model | 1-6×1600 | 3-12×2000 | 4-16×2100 | 8-25×2300 |
| Coil Material | δs≤230N/mm2, Hot-rolled Coil, Stainless Steel Coil | |||
| Coil Thickness | 1.0~6.0mm | 3.0~12.0mm | 4.0~16.0mm | 8.0~25.0mm |
| Coil Width | 800~1600mm | 800~2000mm | 1000~2100mm | 1000~2300mm |
| Coil Weight | ≤25 tons | ≤25 tons | ≤30 tons | ≤40 tons |
| Coil ID | ф508 & 610 & 760mm | ф610~ф820mm | ф610~ф820mm | ф610~ф820mm |
| Coil OD | ≤ф2000mm | ≤ф2000mm | ≤ф2000mm | ≤ф2200mm |
| Cutting length | 500~6000mm | 500~12000mm | 500~12000mm | 500~12000mm |
| Cutting Accuracy | ±1.0mm | ±1.5mm | ±1.5mm | ±2.0mm |
| Line Speed | 0~35m/min | 0~25m/min | 0~25m/min | 0~20m/min |
| Control System | PLC | PLC | PLC | PLC |
High speed fly shear cut to length line
| Model | 0.25-2×1250 (1600) | 0.5-2.5×1250 (1600) |
| Coil Material | Copper coil, Aluminum coil, Stainless Coil, Galvanized Coil | |
| Coil thickness | 0.25~2mm | 0.5~2.5mm |
| Coil width | 300~1250mm(1600mm ) | 300~1250mm(1600mm ) |
| Coil weight | ≤20T (25T) | ≤20T (25T) |
| Coil ID | φ508mm | φ508mm |
| Coil OD | ≤φ1800mm | ≤φ1800mm |
| Cutting Accuracy | ≤±0.5mm | ≤±0.5mm |
| Line Speed | 70~100m/min | 70~100m/min |
| Electrical Control System | PLC | PLC |
Pickling coil Cut to length line
| Model | 1.0-6.0×1250 | 1.0-6.0×1600 (1800) | 1.0-6.0×2000 |
| Coil material | Pickling coil | ||
| Coil thickness | 1.0~6.0mm | 1.0~6.0mm | 1.0~6.0mm |
| Coil width | 500~1250mm | 500~1600mm(1800mm) | 500~2000mm |
| Coil weight | ≤20T | ≤25T (28T) | ≤30T |
| Coil ID | ф508 ф610 ф760mm | ф508 ф610 ф760mm | ф508 ф610 ф760mm |
| Coil OD | ≤ф2000mm | ≤ф2000mm | ≤ф2000mm |
| Length range | 750~6000mm | 750~6000mm | 750~6000mm |
| Cutting accuracy | ±0.5mm | ±0.5mm | ±0.5mm |
| Line speed | 0~60m/min | 0~60m/min | 0~60m/min |
| Electrical control | PLC | PLC | PLC |
|
|
