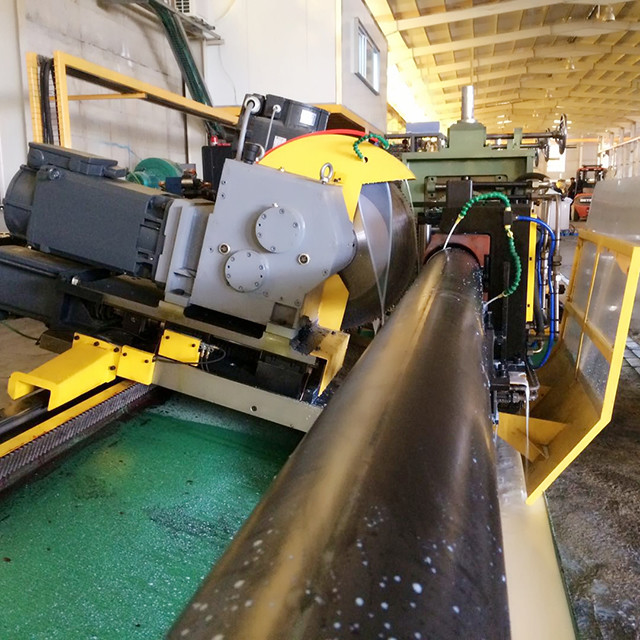

Cold Saw Cut Off Machine
Welcome to Taicang Global Machinery Co., Ltd
At Global Machinery, we provide Tube Mill, Slitting & Cut to length Line and corresponding components, and meet your customized requirements. Contact us right now!
Cold saw cut off machine sophisticatedly designed by TGMCO, runs safer, cut cleaner, and less prone to breakage. The cold saw can be operated either by HSS or TCT blades. The traveling carriage is accelerated by a reliable rack and pinion system, AC or DC driven. It runs quietly. Comparing to flying cut off machine, one important advantage is accuracy. To get this best result, the machine is designed and programmed for precise feed and cutting speed control. An optimal cut depends on a precise speed control system. The ability to manipulate the blade speed and feed rate is critical to both mill line speed and blade life.
TGMCO has developed the software that performs the necessary calculations to determine the cutting paths, maximizing the cutting rate, and preventing collisions. It also provides the feeding system an accurate and backlash-free movement.
TGMCO cold saw cut off machine is to make a clean and very precise in-line cut without influencing the effective production speed on the basis of which the cut-off performance parameters are optimized.
Main Specification
Centralized lubrication system for a better machine maintenance and
longer service life
Burr-free cutting without need for end facing process
Various length of cutting without stopping the tube mill
Easy-to-use computer based graphic interface
Able to handle products of various shape: round, square,
rectangular, open profile
High cutting accuracy
Remote monitoring function enabling the on-site operation status
being assessed at remote locations
Once programmed, no need for constant operator presence at control
desk
| Model No. | Size (mm) | Thickness (mm) | Length (m) | Tolerance (mm) | Speed (m/min) |
| CS32 | Ø 12 – 32 | 0.6 – 1.5 | 4.0 – 8.0 | ≤ ±1 | Max. 120 |
| □ 10 – 25 | |||||
| CS60 | Ø 20 – 60 | 1.0 – 3.5 | 4.0 – 12.0 | ≤ ±1 | Max. 105 |
| □ 15 – 47 | |||||
| CS76 | Ø 32 – 76 | 1.5 – 3.75 | 4.0 – 12.0 | ≤ ±1 | Max. 95 |
| □ 25 – 60 | |||||
| CS89 | Ø 38 – 89 | 1.5 – 4.0 | 4.0 – 12.0 | ≤ ±2 | Max. 90 |
| □ 30 – 70 | |||||
| CS114 | Ø 50 – 114 | 1.5 – 5.0 | 4.0 – 12.0 | ≤ ±2 | Max. 80 |
| □ 40 – 90 | |||||
| CS127 | Ø 60 – 127 | 2.0 – 6.0 | 4.0 – 12.0 | ≤ ±2 | Max. 55 |
| □ 40 – 100 | |||||
| CS165 | Ø 89 – 165 | 2.0 – 7.0 | 4.0 – 12.0 | ≤ ±2 | Max. 50 |
| □ 70 – 130 |
|
|
