Door Frame Roll Forming Machine with Fly Saw Cutting-off Device

A. Process Flow

Decoiler--Feeding--Leveling—-Forming---Measuring & Cutting---Out table

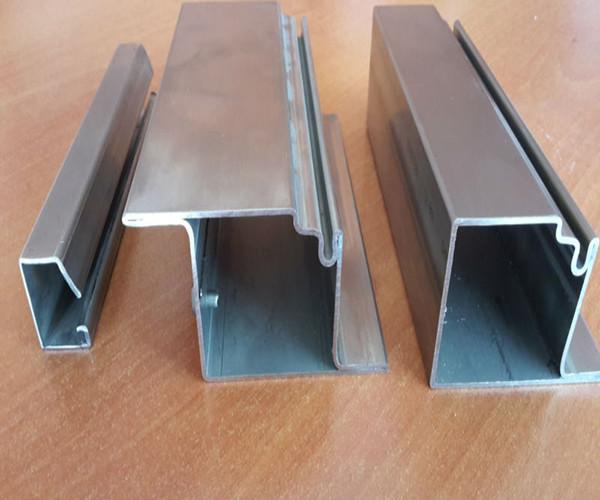

B. Profile Drawing

C. Main Technical Parameters

1. Manual Decoiler

• Passive decoiling, manual expansion
• Coil OD: Φ1600mm
• Coil ID: Φ500-600mm
• Coil width: Max 600 mm
• Coil weight: 1.5 tons

2. Main roll forming device

• Shaft material: 45# steel, outer diameter65mm
• Roller material: GCR15 bearing steel HRC58-60°
• Flatting roller: 35
• wire-electrode cutting structure , Archway and Chain transmission
• Forming speed:3m/min
• Main motor power:15kw
• Machine weight: more than 8T
• Voltage: 380V 50Hz 3phase
• Final products used interlock design, not welding.

3. Fly sawing cutting device

4. Electrical control system

• Screen: Touch screen
• PLC: Panasonic
• Automatic length measurement
• Automatic quantity measurement
• Computer is used to control length and quantity. Machine will automatically cut to length and stop when required quantity is achieved
• 7.6 Length inaccuracy can be amended easily

5. Exit table

• One out table with one support roller
• Quantity: 5
