0.8~1.5mm Thickness Automatic Metal Fire Damper Roll Forming Making Machine

Summary

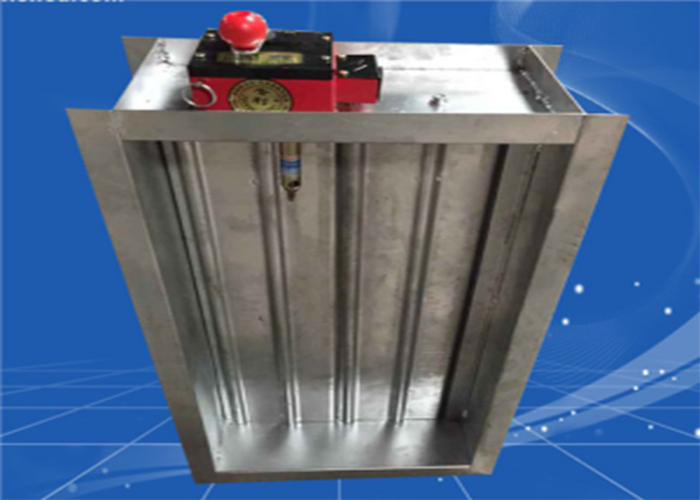

Fire damper roll forming machine produced fire damper frame, installed in the ventilation or air-conditioning systems, usually it is open, once fire occurs, the gas temperature of duct arrives at 70 degrees, and then the fuse protector will be fused and the damper will close under the pull of spring.

Quick Details

• Product name: Fire Damper
• Brand: TGMCO
• Forming speed: 10-15m/min
• Material: Galvanized steel sheet
• material thickness: 0.8-1.5 mm
• Feeding width: 900-1220
• Forming stations: 12-18 stations
• Roller material: GCr15 with quenched treatment 58-62°C
• Roller driven type : Chain transmission or Gear box
• Power:7.5-15Kw
• power supply: 380V, 50Hz, 3Phase
• Machine weight: 4.5T
• Machine Dimension:7.3*1.2*1.5
• Warranty: 1 year

Machine Components

Technical Parameters

Working flow

Decoiler—Feeding—Main Roll forming—Hydraulic Cutting—Output table

​Picture for reference

FAQ
1) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided). We have cooperated with many customers all over the world with high market reputation, no worries.
2) Q: How to choose the Tube Mill Line?
A: You have to inform us following details:
- The pipe material
- Round pipe range
- Square pipe range
- Rectangle pipe range
- Wall thickness range
- The pipe usage
3) Q: How to choose the Roll Forming Machine?
A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil weight
- Cutting type
- Profiles drawings
- Other special attention
4) Q: How to choose the Slitting Line & Cut to Length line?
A: You have to inform us following details:
- Coil material
- Coil thickness
- Coil width
- Coil weight
- Finished sizes
- Other special attention
55) Q: Where is the nearest airport to your company?
A: Shanghai Putong or Hongqiao Airport.
6) Q: How about your service?
A: Before sales:
- Technical Support: TGMCO will provide detailed technical information such as technical & commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
- Apply Visa: TGMCO will provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.
After sales: TGMCO provides comprehensive After Sales Support and Service to meet our customer need.
- Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.
- Installation and commissioning: TGMCO will send our technicians to customer's workshop for supervision of installation and commission
Training of Customers' technician/workers during commission
- Breakdown Support: We offer 1 year warranty service for main crucial components except consumables
Inform immediate technical assistance and advice to customer by phone or e-mail.
Skilled and experienced engineers are capable of dealing with any type of breakdowns.
Technical service work performed in Customer's site if required.
Urgently supply mechanical or electronic components.
Fast supply of spare parts and wearing parts to cover foreseeable requirements

Packing & Delivery

Since its inception, TGMCO has been focused on providing the complete turnkey sheet metal processing machines solutions based on innovative technology, high automation, customized design, and value-added engineering. Till now, it is considered as one of the professional leading China manufacturers of tube mill, roll forming machine, slitting and cut to length lines and has exported over 50 countries and highly praised and appreicated by the customers and partners of the domestic and overseas market

TGMCO brings value to your manufacturing process by providing comprehensive design and building services, offering the optimized solution to help you maximize productivity and efficiencies on a large scale.

TGMCO will keep on delivering the highest quality level sheet metal processing machines, using top quality machinery parts to ensure machine work safety, reliability and durability. Our mission is to provide the best machines to meet customers’ needs and exceed their expectations.
