    25kw Perforation Cable Tray Roll Forming Machine

    Ask Lasest Price
    Brand Name : TGMCO
    Certification : SGS
    Price : $20000-$45000/set
    Payment Terms : L/C, T/T
    Delivery Time : 5 sets per month
    • Product Details
    • Company Profile

    25kw Perforation Cable Tray Roll Forming Machine


    High Speed Customized Cable Tray Roll Forming Machine


    Product Description

    Shelving upright column making machine design for producing storage rack, warehouse shelves stud, upright post & Supermarket storage rack upright shelf frame profile machinery.

    Storage shelving upright column production line
    Roll forming machine for production pallet stud,upright shelf, rack shelf, metal frame.

    Main parameters

    Control SystemPLC Colored Touch Screen
    Main Frame350H STEEL
    Side Plate Thickness18mm
    Main Power15kw+4kw
    Power Supply380V, 3-Phase,50Hz or any
    Forming Speed8-12m/min
    Roll Station19 stands
    Shaft Diameter80mm
    Feeding Thickness1.5-2.5mm
    Cutter StandardCr12
    Roller Standard45# Plating Cr
    Customized according to customer requirements

    Machine components


    No.NameQty
    15 Tons Manul Uncoiler1
    2Feeding Machine1
    3Punching Machine1
    4Main Roll Former1
    5Hydraulic Cutting Device1
    6PLC Control1
    7Hydraulic Station1
    8Output Table2


    Technical parameters

    ItemsItemsSpecifications
    Material of coilMaterial Width100-800mm
    Material Thickness0.8-2.0mm
    Manual Uncoiler3-5 tons
    Leveling5 rollers2rollers up, 3rollers down
    Forming systemForming Speed5-10m/min
    Production Speed3-6m/min
    Forming Stationsabout 12-14 stations
    Roller Material45# steel
    Shaft diameter60-90mm
    Shaft MaterialHigh Grade 45# steel
    Main Motor Power15-25kw
    Machine structureArchway or wall panel
    TransmissionGear box or chain
    Cutting systemHydraulic Power5.5-7.5kw
    Cutting bladeCr12Mov,quenching HRC 58-62
    Tolerance+-1.5mm
    Electrical control systemElectric Source380V, 50HZ,3 phase
    PLC Control SystemSiemens/Panasonic

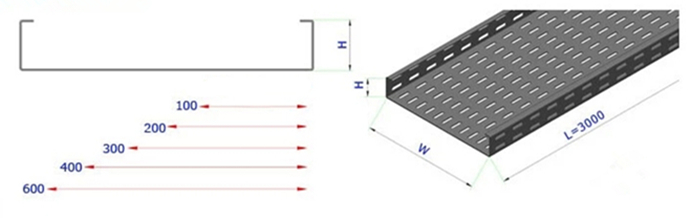

    Profile drawing


    Working flow


    Decoiler—Feeding&Leveling—Punching—Roll forming—Cutting—Output table

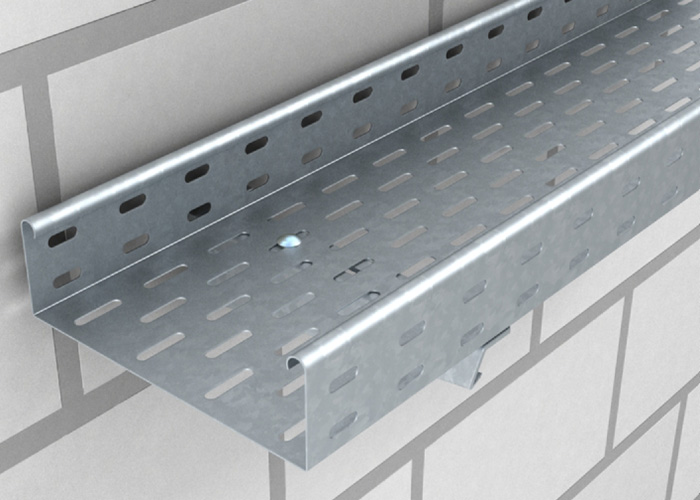

    Picture for reference






    FAQ
    1) Q: Will you deliver the right goods as ordered? How can I trust you?
    A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided). We have cooperated with many customers all over the world with high market reputation, no worries.
    2) Q: How to choose the Tube Mill Line?
    A: You have to inform us following details:
    - The pipe material
    - Round pipe range
    - Square pipe range
    - Rectangle pipe range
    - Wall thickness range
    - The pipe usage
    3) Q: How to choose the Roll Forming Machine?
    A: You have to inform us following details:
    - Coil material
    - Coil thickness
    - Coil weight
    - Cutting type
    - Profiles drawings
    - Other special attention
    4) Q: How to choose the Slitting Line & Cut to Length line?
    A: You have to inform us following details:
    - Coil material
    - Coil thickness
    - Coil width
    - Coil weight
    - Finished sizes
    - Other special attention
    55) Q: Where is the nearest airport to your company?
    A: Shanghai Putong or Hongqiao Airport.
    6) Q: How about your service?
    A: Before sales:
    - Technical Support: TGMCO will provide detailed technical information such as technical & commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
    - Apply Visa: TGMCO will provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.
    After sales: TGMCO provides comprehensive After Sales Support and Service to meet our customer need.
    - Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.
    - Installation and commissioning: TGMCO will send our technicians to customer's workshop for supervision of installation and commission
    Training of Customers' technician/workers during commission
    - Breakdown Support: We offer 1 year warranty service for main crucial components except consumables
    Inform immediate technical assistance and advice to customer by phone or e-mail.
    Skilled and experienced engineers are capable of dealing with any type of breakdowns.
    Technical service work performed in Customer's site if required.
    Urgently supply mechanical or electronic components.
    Fast supply of spare parts and wearing parts to cover foreseeable requirements


    Packing & Delivery
