    2mm Upright for Rack and Shelf Roll Forming Machine – By Gear Box

    Ask Lasest Price
    Brand Name : TGMCO
    Certification : SGS
    Price : $80000-$100000/set
    Payment Terms : L/C, T/T
    Supply Ability : 5 sets per month
    Delivery Time : 90 days after receipt of down payment
    • Product Details
    • Company Profile

    2mm Upright for Rack and Shelf Roll Forming Machine – By Gear Box


    2mm Upright for Rack and Shelf Roll Forming Machine – By Gear Box


    A. Machine Detailed Parameters


    1Machine structureWire-electrode cutting
    2Main power18.5KW
    3Roller stationsAbout 18 stations with torque head
    4Productivity5-7m/min including punching time
    5Drive systemBy gear box
    6Diameter of shaft¢70mm solid shaft
    7Voltage380V 50Hz 3phases (Customized)
    8Container need1x40GP + 1x20GP container

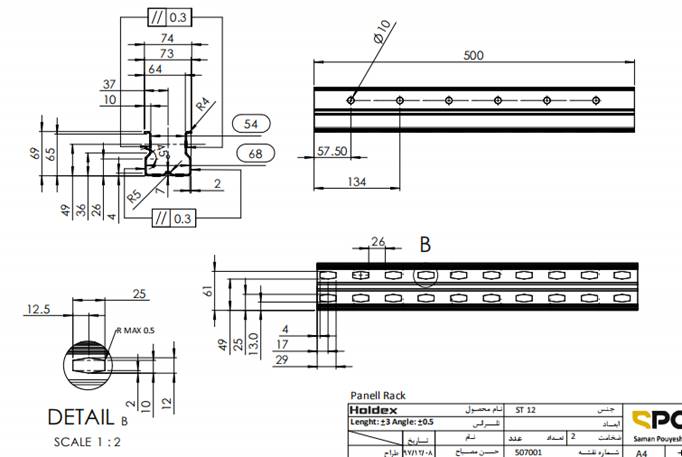

    B. Profile Drawing



    NoSpecification of the material
    1Suitable MaterialCR,HR
    2Width of the raw materialBased on the profile
    3Thickness2.0mm

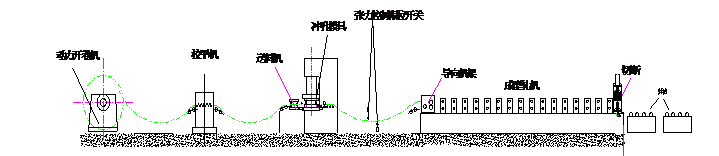

    C. The Chart of Process Flow



    Un-coiler—Leveling —Servo feeding & Punching—Roll Forming—Cutting—out table


    D. Specification of Components


    NoItemTechnical Specification & Remark
    15T Hydraulic Un-coiler
    • Steel coil width: 550 mm;
    • Internal diameter of coil: variable, from 470 mm to 520 mm
    • Maximal out diameter:1200mm
    • Maximum coil weight: 5000 Kg;
    • Main motor power: 5.5KW
    • Hydraulic power: 4kw
    • Speed controlled by frequency converter
    • Quantity: 1
    2Leveling part
    • feed into unit oriented wheel(can adjust right and left)
    • Flattener roller: three rollers over four, quenched on the surface
    • Flattener roller material: SAE 1045 quenched to 48-52 HRC, surface chromed
    • Diameter of flattener shaft:¢76mm
    • Power: 4KW AC motor
    3Servo Feeding & Punching
    • Servo feeding system
    • Function: feeding
    • Structural features:adopt servo motor to feeding in Multistage, which can input ten different lengths. Liquid crystal touch screen is easy to set the data. Auto-induction system is connected with the punch machine which is controlled it.
    • Servo power: 2.9KW
    • Servo brand: Yaskawa
    • 110T punching machine
    • Mode: JH21-110
    • punching machine adopt continue punching
    • Power: 11KW
    • SPM: 50times /MIN
    • Mould :Cr12 with quenching treatment
    • Numbers of moulds: one set
    • brand of punching machine: Yang Li
    4Main Roll Forming Machine
    • Roll station: about 18 stations with torque head
    • Roller material:Gcr15, 58-62,HRC hardness and chrome plated surface
    • Shaft diameter: ¢70mm material: SAE1045 thermal refining
    • Drive by gear box
    • Main motor: 18.5KW
    5Machine structure:
    • Main frame by steel plate welding
    • Machine structure: wire-electrode cutting
    6Hydraulic cutting system
    • Cutting after forming: Cut the sheet after roll forming to required length
    • Diameter of oil cylinder:80mm
    • Hydraulic power:5.5KW
    • Hydraulic pressure: 16Mpa adjustable
    • Material of blade: CR12 quenching to 58-62HRC
    • Length measuring: Automatic encoder length measuring
    • Tolerance of length: 3m+/- 1.5mm
    7Hydraulic System
    • Hydraulic power: 5.5kw with cooling fan
    • Working pressure: 16Mpa adjustable
    • Solenoid valve: 1 group
    • Hydraulic oil: 46# hydraulic oil
    • Quantity :1
    8Computer Control Cabinet
    • Programmable setting of profile length and quantity
    • Operating system language: English and Chinese
    • Voltage, Frequency, Phase: 380 V, 60 Hz, 3Phase(customized)
    • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
    • Length inaccuracy can be amended easily.
    • Control panel: Button-type switch and touch screen
    • Unit of length: millimeter
    • PLC brand: Panasonic
    • Transducer: Yaskawa
    • Touch screen: MCGS
    • Encoder: Omron
    9Out table
    • Jointed by steel tube
    • One out table with one support roller
    • Quantity: 5 units
    10Spare Parts
    • Bearing: 2 pieces.
    • Limit switch: 2 pieces
    • Relay: 2 pieces.
    • Oil tube: 1 piece
    • Screws and nuts: some.
    • Tools: spanner, hex spanner and adjustable wrench and other correlative adjust machine tools

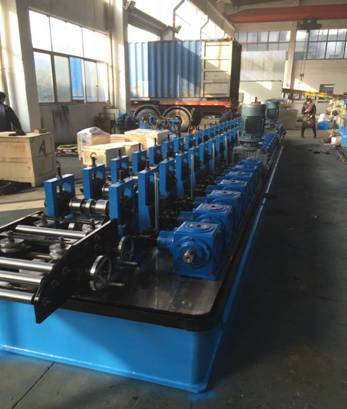

    Machine photo for reference:







    FAQ
    1) Q: Will you deliver the right goods as ordered? How can I trust you?
    A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided). We have cooperated with many customers all over the world with high market reputation, no worries.
    2) Q: How to choose the Tube Mill Line?
    A: You have to inform us following details:
    - The pipe material
    - Round pipe range
    - Square pipe range
    - Rectangle pipe range
    - Wall thickness range
    - The pipe usage
    3) Q: How to choose the Roll Forming Machine?
    A: You have to inform us following details:
    - Coil material
    - Coil thickness
    - Coil weight
    - Cutting type
    - Profiles drawings
    - Other special attention
    4) Q: How to choose the Slitting Line & Cut to Length line?
    A: You have to inform us following details:
    - Coil material
    - Coil thickness
    - Coil width
    - Coil weight
    - Finished sizes
    - Other special attention
    55) Q: Where is the nearest airport to your company?
    A: Shanghai Putong or Hongqiao Airport.
    6) Q: How about your service?
    A: Before sales:
    - Technical Support: TGMCO will provide detailed technical information such as technical & commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
    - Apply Visa: TGMCO will provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.
    After sales: TGMCO provides comprehensive After Sales Support and Service to meet our customer need.
    - Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.
    - Installation and commissioning: TGMCO will send our technicians to customer's workshop for supervision of installation and commission
    Training of Customers' technician/workers during commission
    - Breakdown Support: We offer 1 year warranty service for main crucial components except consumables
    Inform immediate technical assistance and advice to customer by phone or e-mail.
    Skilled and experienced engineers are capable of dealing with any type of breakdowns.
    Technical service work performed in Customer's site if required.
    Urgently supply mechanical or electronic components.
    Fast supply of spare parts and wearing parts to cover foreseeable requirements
