    L U Type Frame Light Gauge Steel Roll Forming Machines

    Ask Lasest Price
    Brand Name : TGMCO
    Certification : SGS
    Price : $15000-$25000/set
    Payment Terms : L/C, T/T
    Delivery Time : 5 sets per month
    • Product Details
    • Company Profile

    L U Type Frame Light Gauge Steel Roll Forming Machines


    Light Gauge Steel L U Type Frame 2 Rows Roll Forming Machine


    Service After Sell:

    In correct operation & maintaining, the machine is guaranteed for one year since leaving. our factory excluding the electric elements.

    Installation:

    (1) If installation is needed, Liming (the seller) will dispatch technician to the buyer's factory abroad to assist regulating the machine with charge free. The buyer should assist Liming to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.

    (2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.

    a) Position the machine in the buyer's factory.

    b) Prepare necessary electric wiring.

    c) Prepare material of trial running.

    d) Provide labors for assistance and installation during installation.

    e) If possible, One Chinese-speaking interpreter so that the communication between the buyer and seller's technician will go smoothly.


    High Grade Profile Making Roof Tile Roll Forming Machine


    Machine components


    No.NameQty
    1Manual Decoiler1
    2Feeding Device1
    3Main Roll Forming1
    4Hydraulic Cutting1
    5PLC Control1
    6Hydraulic Station1
    7Output Table2


    Technical parameters

    ItemsItemsSpecifications
    Material of coilMaterial Width80-300mm
    Material Thickness0.3-0.8mm
    Decoiler3 tons
    Feeding&Leveling5 Rollers Leveling2rollers up, 3rollers down
    Forming systemForming Speed10-15m/min
    Forming Stationsabout 12-15 stations
    Roller Material45# steel
    Shaft diameter60-80mm
    Shaft Material45# steel
    Main Motor Power5.5-7.5kw
    Machine structureWall panel
    TransmissionBy chain
    Cutting systemHydraulic Power3-5.5kw
    Cutting bladeCr12Mov,quenching HRC 58-62
    Tolerance+-1.5mm
    Electrical control systemElectric Source380V, 50HZ,3 phase
    PLC Control SystemSiemens/Panasonic

    Profile drawing


    Working flow


    Decoiler—Feeding—Main Roll forming—Hydraulic Cutting—Output table

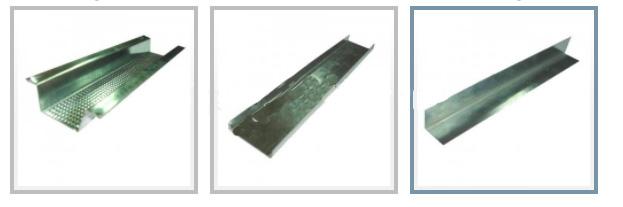

    Picture for reference




    FAQ
    1) Q: Will you deliver the right goods as ordered? How can I trust you?
    A: Yes, we will. We are Gold supplier of Made-in-China with SGS assessment (Audit report can be provided). We have cooperated with many customers all over the world with high market reputation, no worries.
    2) Q: How to choose the Tube Mill Line?
    A: You have to inform us following details:
    - The pipe material
    - Round pipe range
    - Square pipe range
    - Rectangle pipe range
    - Wall thickness range
    - The pipe usage
    3) Q: How to choose the Roll Forming Machine?
    A: You have to inform us following details:
    - Coil material
    - Coil thickness
    - Coil weight
    - Cutting type
    - Profiles drawings
    - Other special attention
    4) Q: How to choose the Slitting Line & Cut to Length line?
    A: You have to inform us following details:
    - Coil material
    - Coil thickness
    - Coil width
    - Coil weight
    - Finished sizes
    - Other special attention
    55) Q: Where is the nearest airport to your company?
    A: Shanghai Putong or Hongqiao Airport.
    6) Q: How about your service?
    A: Before sales:
    - Technical Support: TGMCO will provide detailed technical information such as technical & commercial offer, machine photos, running video, layout, operation manual, and show you working machines in our factory.
    - Apply Visa: TGMCO will provide officially invitation letter to apply Visa in china embassy as authority procedures and requirements.
    After sales: TGMCO provides comprehensive After Sales Support and Service to meet our customer need.
    - Drawings: Provide the foundation drawing, electric scheme and wiring diagram, hydraulic drawing, pneumatic & electric pipeline drawing and other drawings requested by customer.
    - Installation and commissioning: TGMCO will send our technicians to customer's workshop for supervision of installation and commission
    Training of Customers' technician/workers during commission
    - Breakdown Support: We offer 1 year warranty service for main crucial components except consumables
    Inform immediate technical assistance and advice to customer by phone or e-mail.
    Skilled and experienced engineers are capable of dealing with any type of breakdowns.
    Technical service work performed in Customer's site if required.
    Urgently supply mechanical or electronic components.
    Fast supply of spare parts and wearing parts to cover foreseeable requirements


    Packing & Delivery
